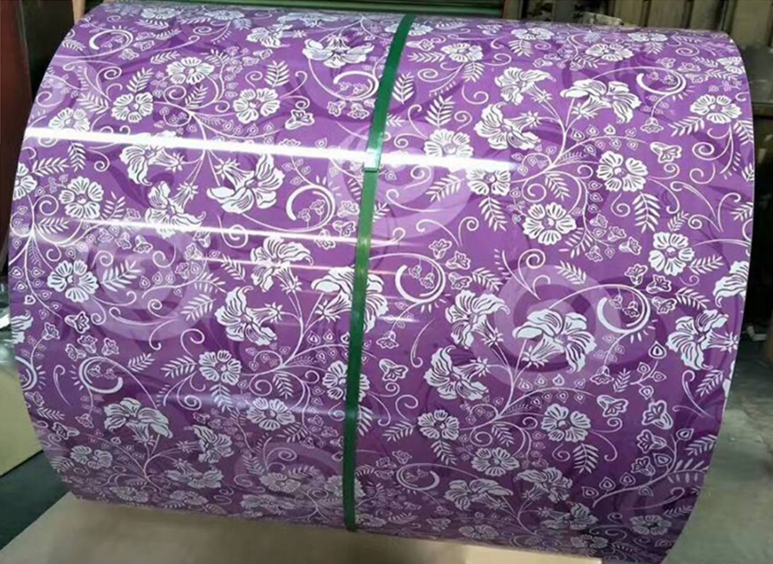

Flower Print Color Coated PPGI Steel Coil

Flower Finish Print Steel Coil

Products Prepainted Steel Coils
Substrate Hot dip galvanized, Galvalume, Aluminium...
Thickness 0.12-1.20mm
Width 600-1250mm  ( Normal:1250, 1220, 1200,1000,914 mm)
Coil weight 3-9 tons or as your requirement.
ID  508/610 mm
Coating Zn coating AZ coating
30-275g/m2 30-275g/m2
Grade Galvanized Galvalume
DX51D+Z, DX52D+Z, DX53D+Z,
DX54D+Z,SGCC,SGCD,SGCE,
SGCH........
DX51D+AZ, DX52D+AZ, DX53D+AZ,
DX54D+AZ,SGLCC,SGLCD,
SGLC440,SGC570.......
Top Paint 10-25 micronNormal10-12mic
Back paint 5-12 micronNormal5-7mic
Coating type Top paint: PE, SMP, HDP, PVDF, PU
Functions: Decorative, Machinability, Weather resistance, Scrath
resistance, Stain resistance, Chemical resistance, Adhesion resistance
Primer paint: Polyurethane, Epoxy, PE
Functions:Machinability, Corrosive resistance, Adhesion, Scrath
resistance
Back paint: Epoxy, Modified polyester
Functions: Scrath resistance, Bending adhesion, Corrosive resistance
